| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | SAFEGAS |
| प्रमाणन: | ATEX/IECEX |
| मॉडल संख्या: | YT-98H |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | कार्टन (43*27*15 सेमी) |
| प्रसव के समय: | 3 काम के दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | प्रति माह 3000 टुकड़े |
| गैस का पता चला: | एचसीएल | पता लगाने का सिद्धांत: | विद्युत |
|---|---|---|---|
| शक्ति: | 12 से 24V डीसी | शुद्धता: | ± ± 2-5%एफएस |
| प्रतिक्रिया समय (T90): | 15 से 30 | repeatability: | ± ± 1% |
| पंप प्रवाह: | 0.35-0.5 एल/मिनट | तापमान: | –20℃ से 55℃ |
| आर्द्रता (कोई संक्षेपण नहीं): | 0 से 95% आरएच | वैकल्पिक अलार्म: | बजर, अलार्म स्थिति प्रदर्शन |
| नमूनाकरण तरीका: | आंतरिक पंप के साथ | ||
| प्रमुखता देना: | 12 to 24V DC Power HCL Gas Detector,≤±2-5%FS Accuracy Fixed Gas Detector,15 to 30s Response Time Multi Gas Detector |
||
Hydrogen chloride (HCL) is a colorless, irritating, corrosive and asphyxiating gas that is volatile and unstable. As an important industrial chemical, it's used in manufacturing dyes, fragrances, pharmaceuticals, various chlorides and corrosion inhibitors.
High-purity HCL gas is widely used in the electronics industry. It has a suffocating odor and is highly irritating to the upper respiratory tract, with corrosive effects on eyes, skin, and mucous membranes. Concentration monitoring is essential to prevent leaks and ensure safety. Maximum allowable concentrations: China (MAC) 15 mg/m³ (9.2ppm); US TLV-C 7.5mg/m³ (4.6ppm).
Due to HCL's volatility and instability, a pump-type detector is recommended for faster and more reliable gas absorption and detection.

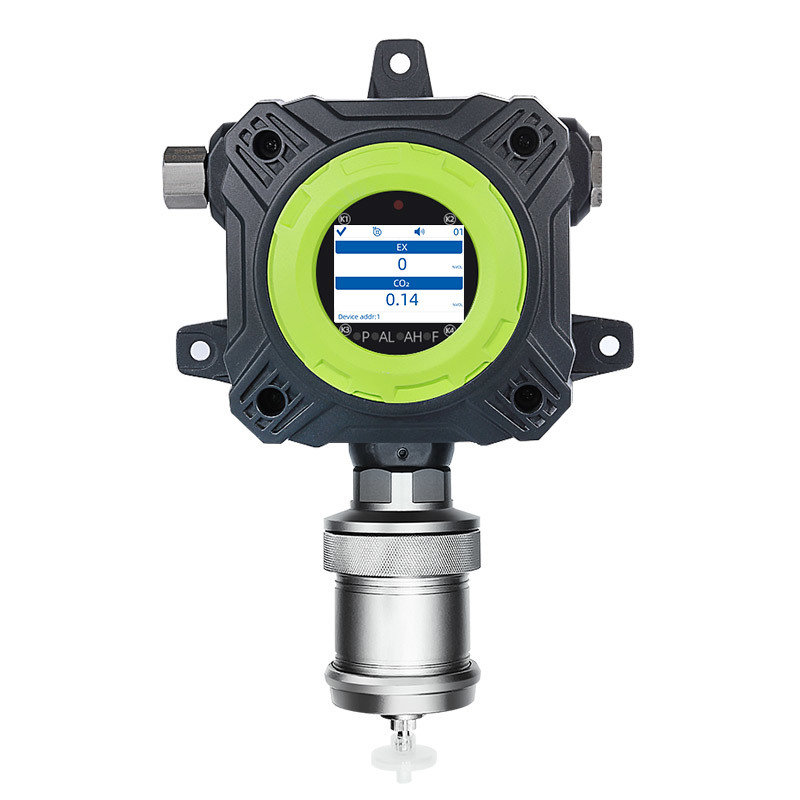

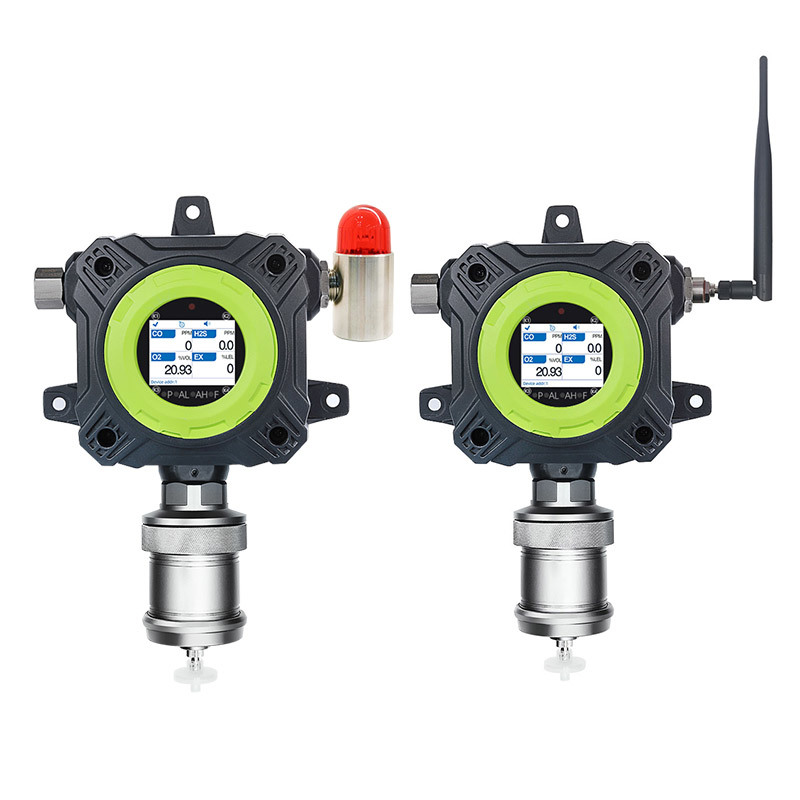

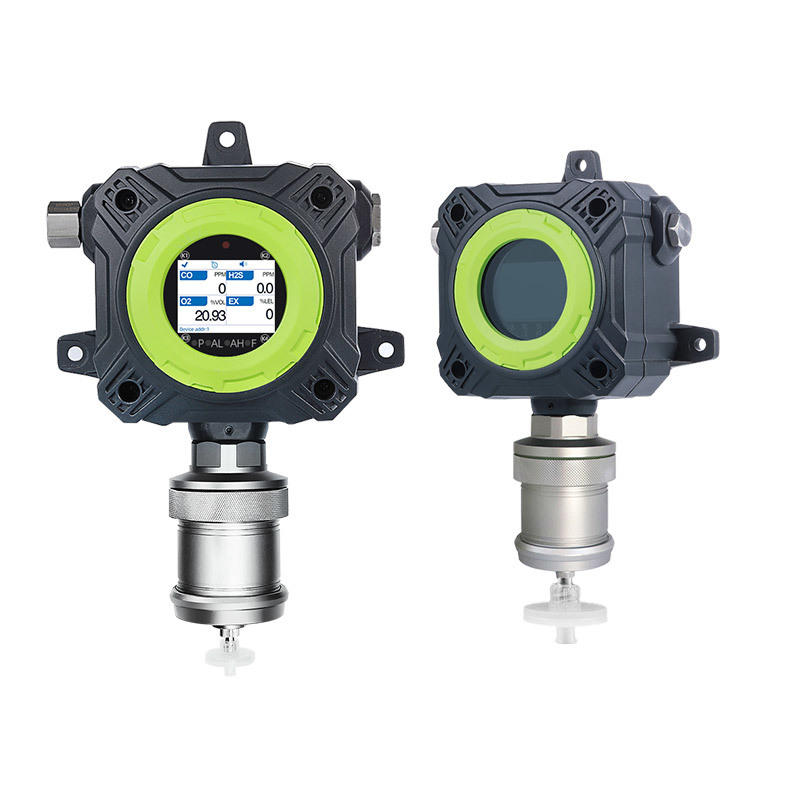

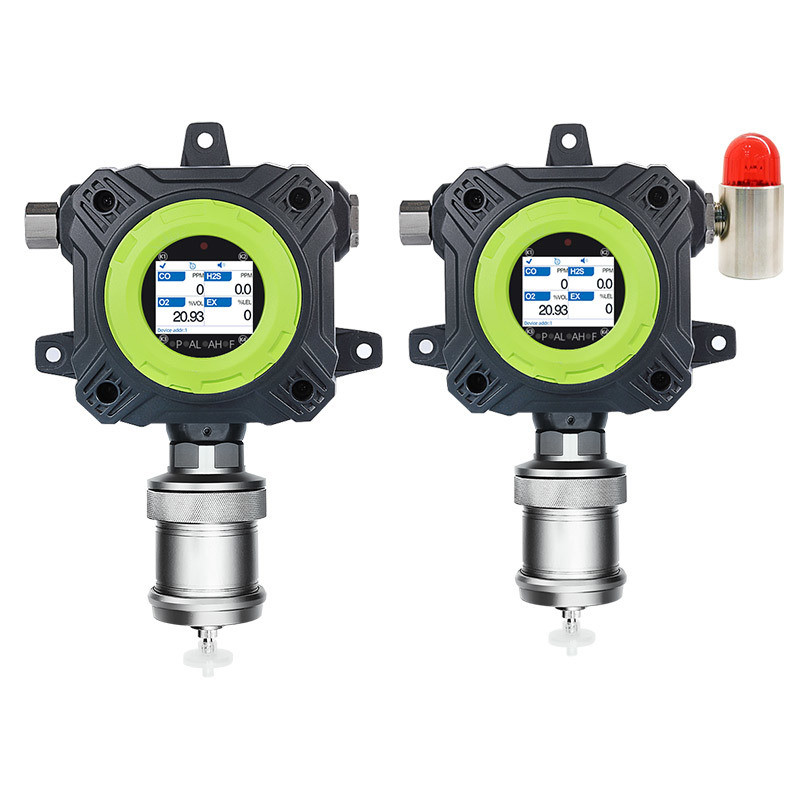

YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi-gas detector with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it's suitable for installation in explosion-proof areas and oil & gas industries.
The detector offers 3-wire 4-20mA output with relays, HART and Modbus protocols for compatibility with most control systems. Optional wireless functionality enables remote data viewing on laptops, mobile phones or cloud systems.
| Parameter | Specification |
|---|---|
| Gas Detected | HCL |
| Detection Principle | Electrochemical |
| Installation Method | Wall-mounted, piping type, flow-type (environment dependent) |
| Measurement Range | 0-10, 20, 50, 100PPM; 0-500, 1000, 2000PPM |
| Resolution | 0.1PPM, 1PPM |
| Accuracy | ≤±2-5%FS (sensor dependent) |
| Signal Output | 4-20mA, RS485, relay |
| Response Time (T90) | 15-30s (sensor dependent) |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color (320*240 resolution) |
| Operating Language | English/Chinese |
| Display Content | Gas molecular formula, concentration, unit, pump status |
| Temperature Range | -20°C to 55°C |
| Humidity Range | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb; ATEX:Ex db IIC T6 Gb |
| Protection Rating | IP66 |
| Alarm Mode | Sound, light |
| Operating Time | 24h |
| Dimensions | 43*27*15cm |
| Weight | 4.6kg |
Safegas specializes in environmental monitoring equipment and systems for 16 years, with gas detectors as our core product. We provide complete production lines and solutions tailored to various industries including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our management philosophy emphasizes market orientation, innovation, quality survival, and development growth. With a professional team and customer-focused approach, we've earned trust in domestic and international markets.
A1: We are a professional manufacturer specializing in gas detectors for over 10 years.
A2: Typically 1 piece.
A3: Our products use imported sensors and components, with full certifications.
A4: 1 year warranty from factory date, with lifetime maintenance support.
