| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | SAFEGAS |
| प्रमाणन: | ATEX/IECEX |
| मॉडल संख्या: | YT-98H |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | कार्टन (43*27*15 सेमी) |
| प्रसव के समय: | 3 काम के दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | प्रति माह 3000 टुकड़े |
| गैस का पता चला: | CO/कार्बन मोनोऑक्साइड | पता लगाने का सिद्धांत: | इलेक्ट्रोकेमिकल |
|---|---|---|---|
| शक्ति: | 12-24V डीसी | शुद्धता: | ≤±2-5%FS (विशिष्ट सेंसर पर निर्भर करता है) |
| प्रतिक्रिया समय (T90): | 15-30s (विशिष्ट सेंसर पर निर्भर करता है) | repeatability: | ± ± 1% |
| पंप प्रवाह: | 0.35-0.5 एल/मिनट | तापमान: | -20 ℃～ 55 ℃ |
| नमी: | 0-95%आरएच (कोई संक्षेपण नहीं) | अलार्म (वैकल्पिक): | प्रदर्शन स्क्रीन पर बजर, अलार्म स्थिति प्रॉम्प्ट, उच्च और निम्न अलार्म मान ग्राहक द्वारा सेट किए जा |
| प्रमुखता देना: | Wireless Data Transmission Fixed Gas Detector,IECEx ATEX Certification Carbon Monoxide Detector,Electrochemical Sensor Single Gas Detector |
||

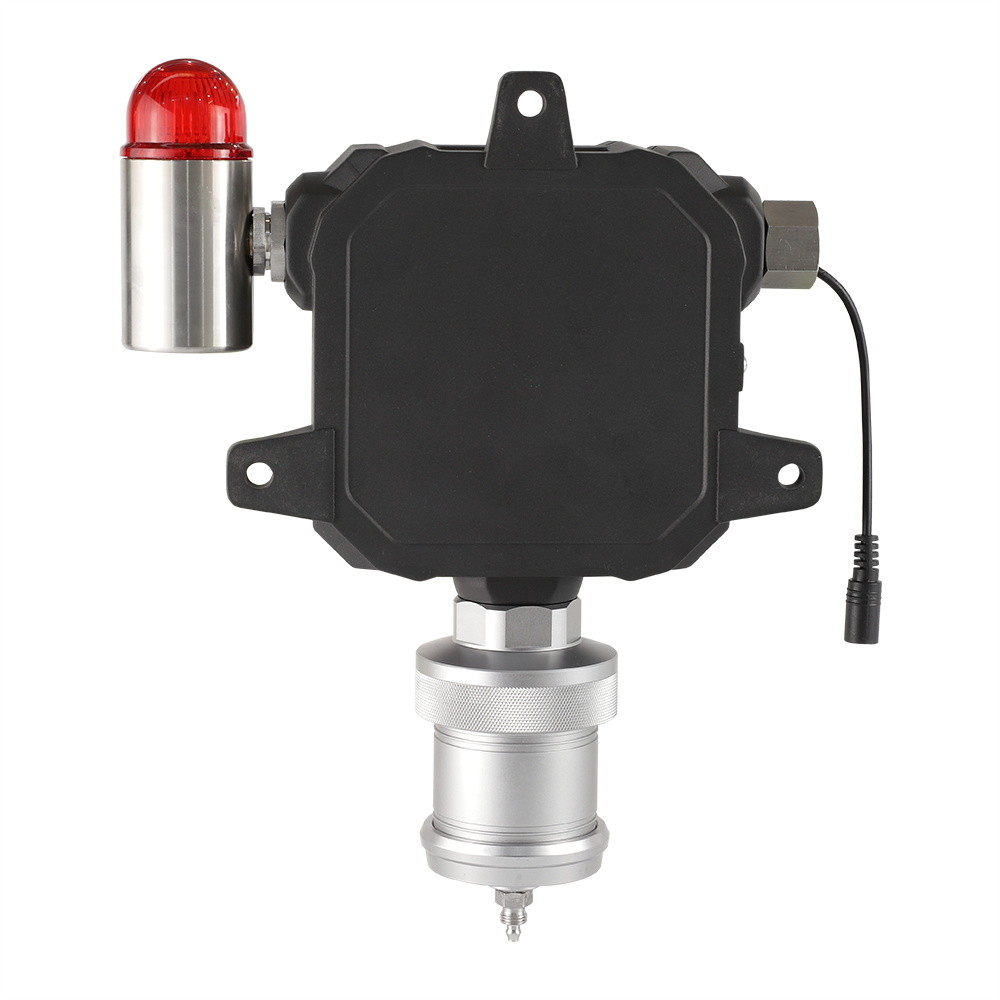

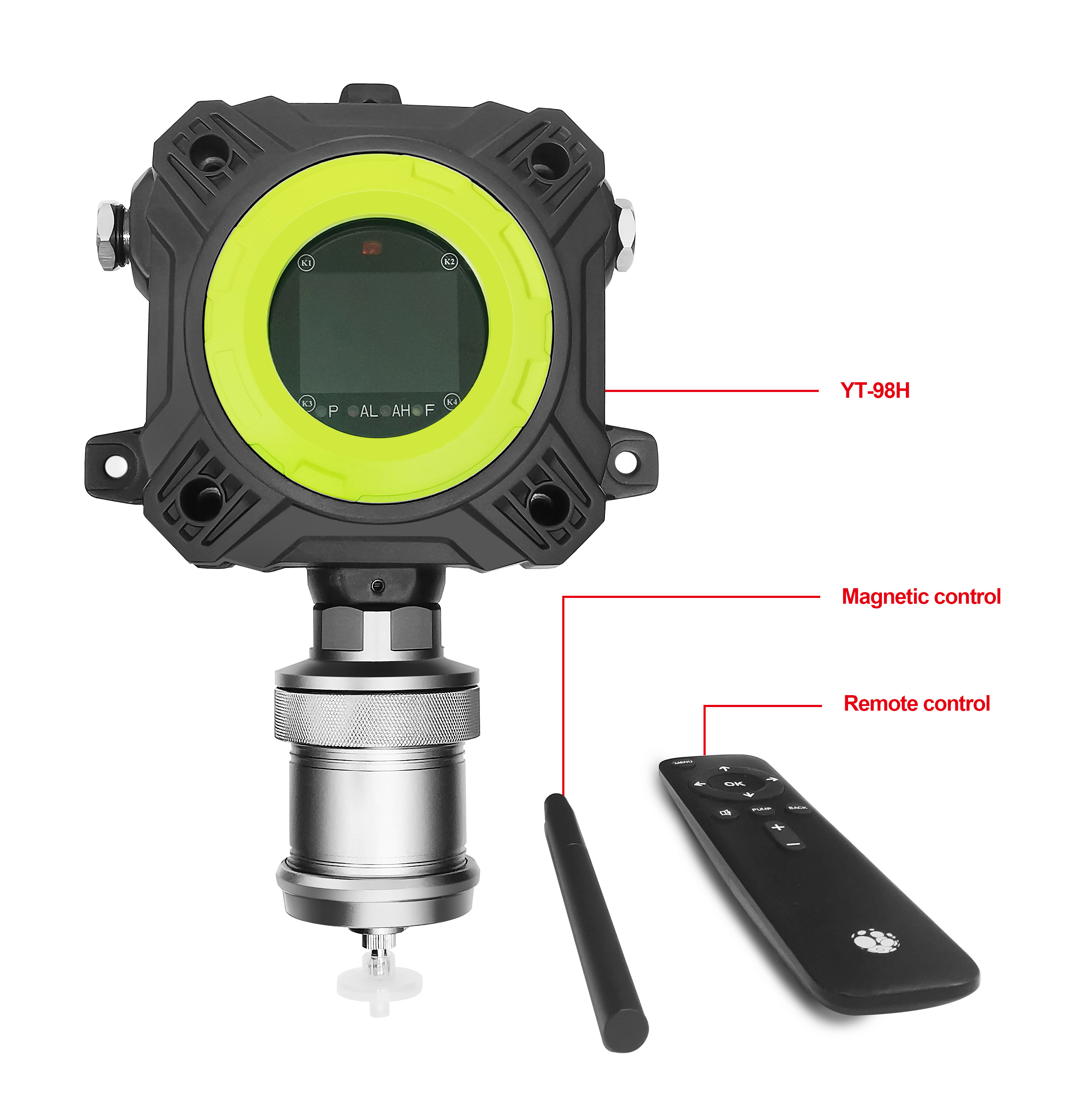

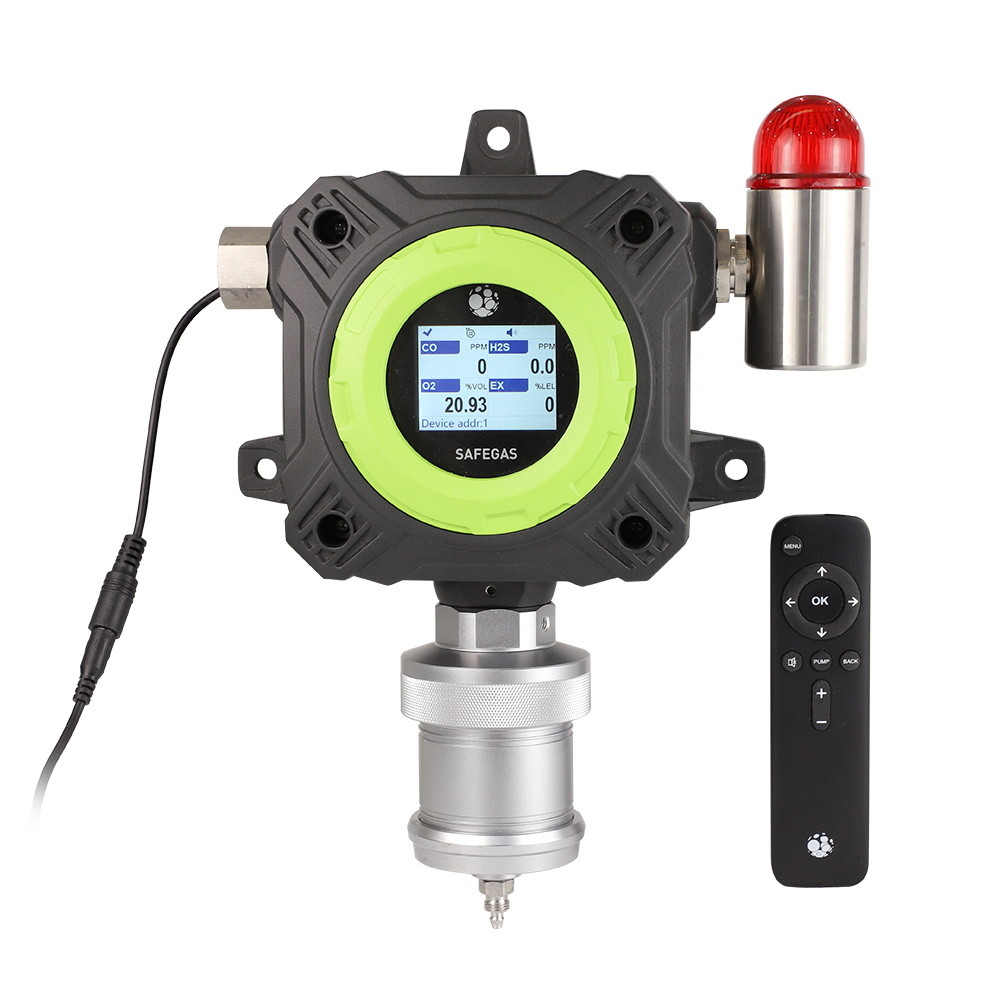

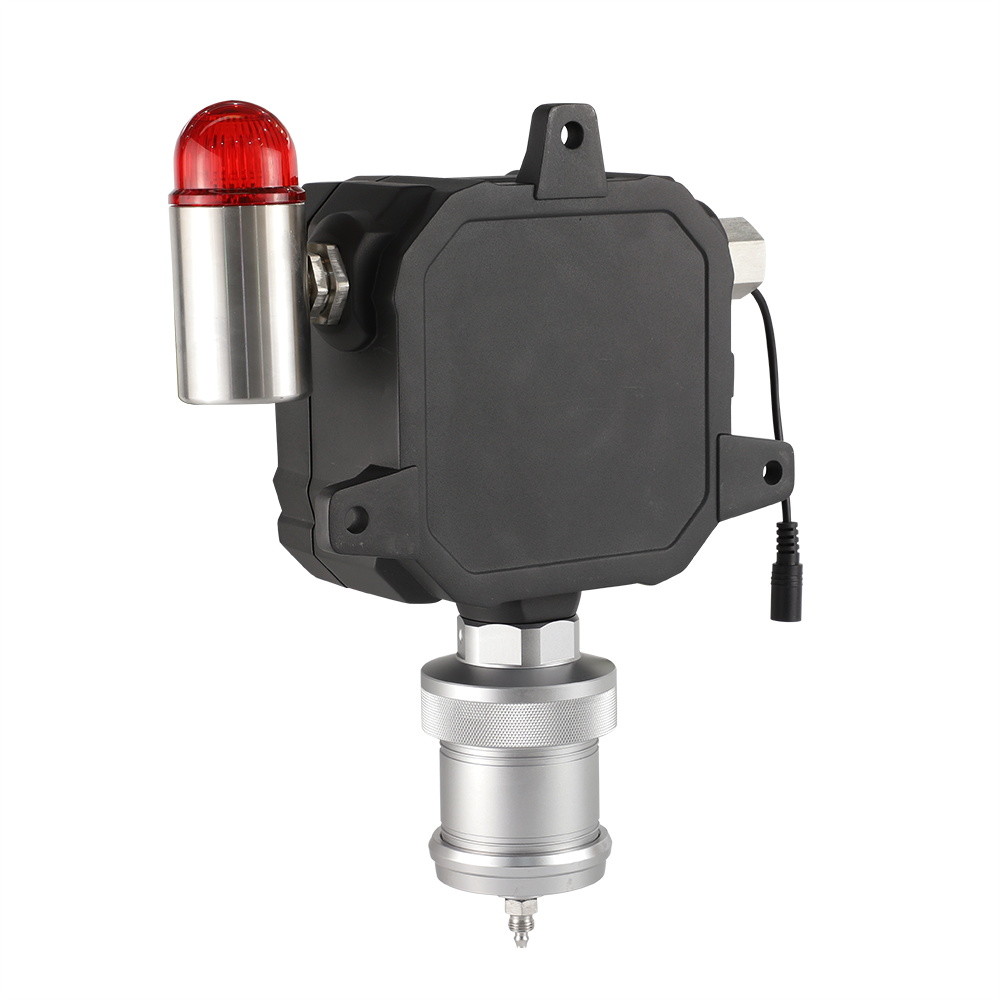

The YT-98H and YT-98H-A are built-in pump-suction fixed gas detectors with IECEx and ATEX certifications. Featuring non-contact magnetic wand design, these detectors are engineered for installation and operation in explosion-proof areas and the Oil & Gas industry.
| Product Dimensions | 286 × 202 × 96mm (H × W × D) |
| Product Weight | 3.4kg (3.8kg with alarm light) |
| Gas Type | CO/Carbon Monoxide |
| Sensor Technology | Electrochemical principle |
| Measurement Range | 0-500/1000/2000 PPM |
| Resolution | 1 PPM |
| Precision | ≤±5% F.S |
| Pump Flow Rate | 0.6(±0.1) L/Min |
| Display | 2.4-inch high-definition color display |
| Power Supply | 12~24V DC |
| Installation Method | Wall-mounted |
| Operating Temperature | -10ºC to +55ºC |
| Operating Humidity | 0~95% RH (non-condensing) |
| Explosion-Proof Rating | Ex db IIC T6 Gb |
Safegas specializes in the design, production, and sales of environmental monitoring equipment and systems with 16 years of industry experience. Our core focus on gas detectors has enabled us to develop comprehensive production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, and more.
A gas detector is an instrument for detecting gas leakage concentrations, including portable gas detectors and fixed gas detectors.
Gas detectors monitor combustible gases such as natural gas (methane), liquefied gas, coal gas, acetylene, and toxic gases including carbon monoxide, hydrogen sulfide, ammonia, chlorine, and others.
PPM represents the volume concentration of gas, meaning the volume of pollutants contained in one million volumes of air. For example, 30ppm ammonia indicates 30 volumes of ammonia per million volumes of air.
