| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | SAFEGAS |
| प्रमाणन: | CNEX CE ISO9001, ISO14001, ISO45001 |
| मॉडल संख्या: | YT-95H |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 3 काम के दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | कागज बॉक्स |
| गैस का पता चला: | SO2 | श्रेणी: | 0-100ppm |
|---|---|---|---|
| संकल्प: | 0.1पीपीएम | सेंसर प्रकार: | विद्युत |
| एचएस कोड: | 9027100090 | DIMENSIONS: | 180मिमी×150मिमी×90मिमी |
| वज़न: | 1.6 किग्रा से कम | विस्फोट प्रूफ ग्रेड: | एक्स डी आईआईसी टी 6 जीबी |
| प्रदर्शन: | एलसीडी | repeatability: | ± ± 1% |
| शून्य शिफ्ट (एफएस/वर्ष): | ± ± 1% |
High-precision Fixed SO2 Gas Detector with diffusion detection principle, designed for industrial safety applications.

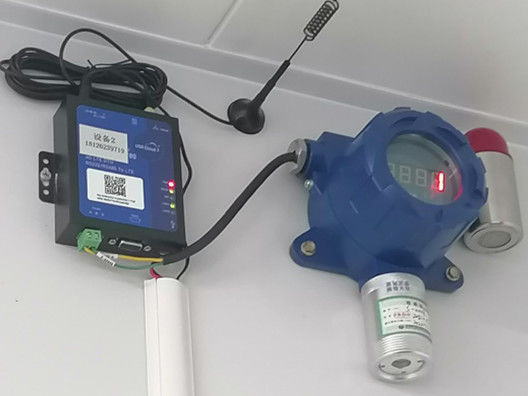

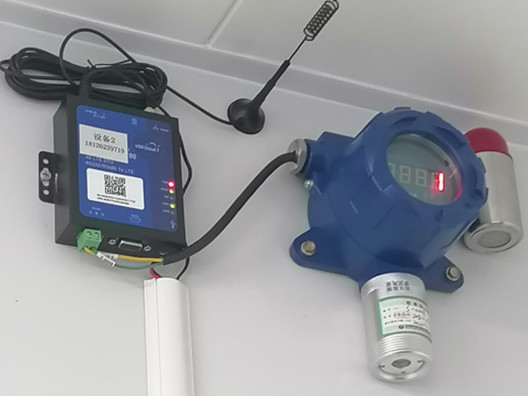

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Features 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol for compatibility with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. Optional wireless function allows operators to view data remotely on laptops, mobile phones, or cloud systems.
| Parameter | Details |
|---|---|
| Gas Detected | SO2 |
| Detection Principle | Electrochemical |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
| Accuracy | ≤±2-5%FS (depending on the specific sensor) |
| Response Time (T90) | 15-30s (depending on the specific sensor) |
| Repeatability | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection Mode | G1/2 external thread explosion-proof flexible pipe |
| Thread Size | M45*2mm |
| Temperature | -20℃ ~ 50℃ |
| Humidity | 0-95%RH (no condensation) |
| Material Case | Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-36V DC |
| Dimensions | 180×150×90mm |
| Weight | ≤1.6kg |
| Explosion-proof Grade | Ex d IIC T6 Gb |
