| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | Safegas |
| प्रमाणन: | CE/ISO |
| मॉडल संख्या: | YT-1200H-एस |
| दस्तावेज़: | YT-1200H-S Datasheet.pdf |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | कार्टून |
| प्रसव के समय: | 3 कार्य दिवस |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 100 टुकड़े/दिन |
| गैस का पता चला: | O2 CO H2S EX | माप सीमा: | 0-100पीपीएम, 0-1000पीपीएम, 0-30%वीओएल, 0-100%एलईएल |
|---|---|---|---|
| रंग: | काले और पीले | सामग्री: | एबीएस और चमड़े का मामला |

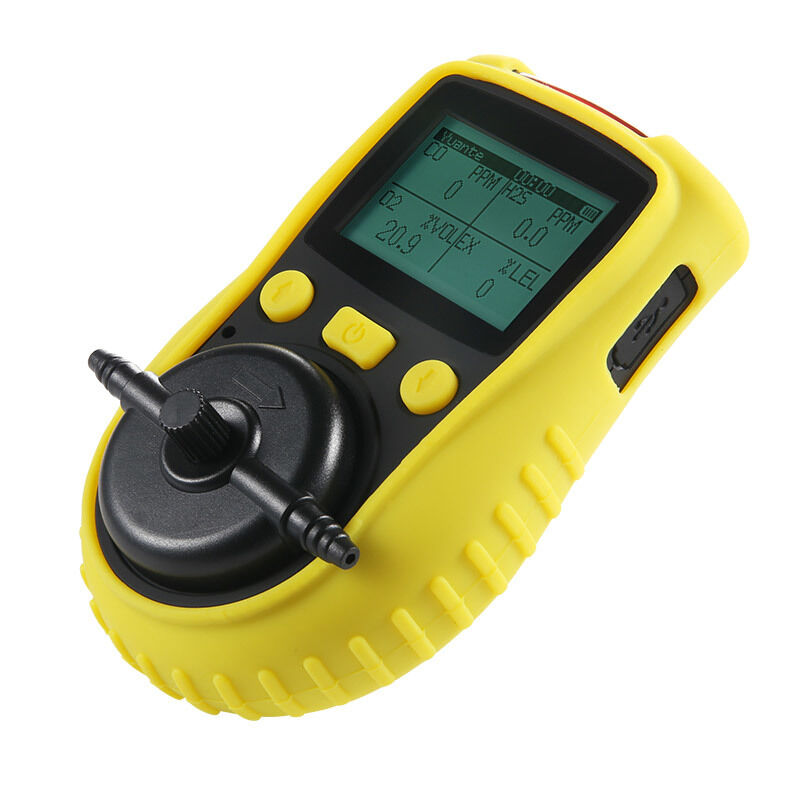

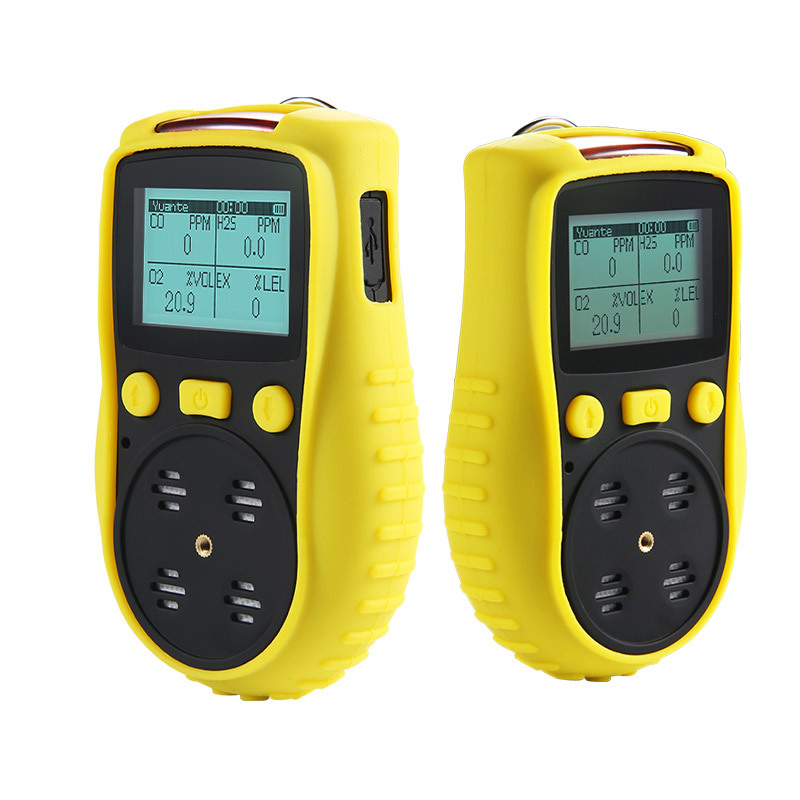

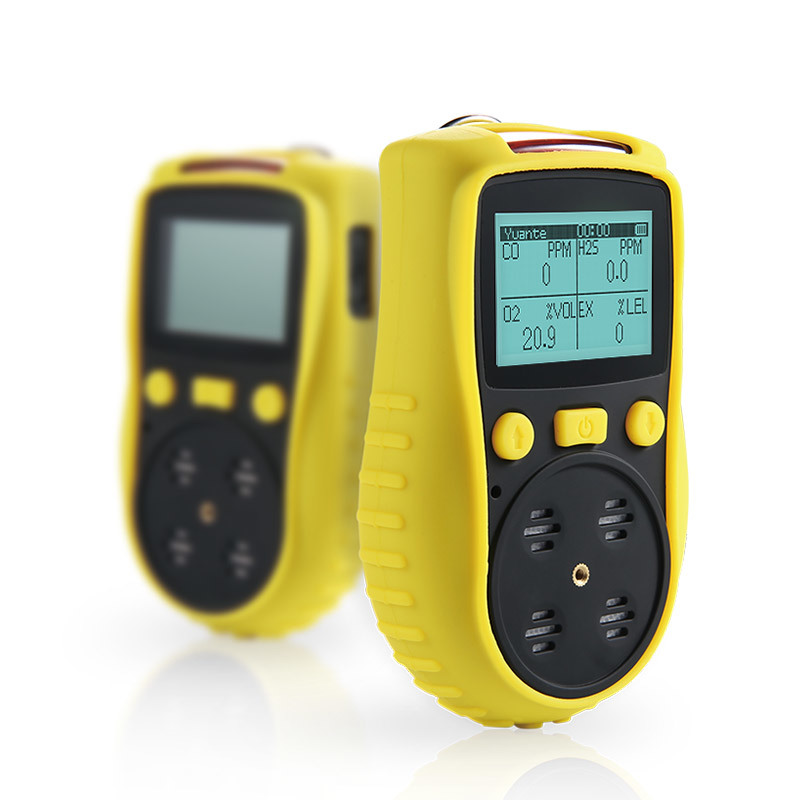

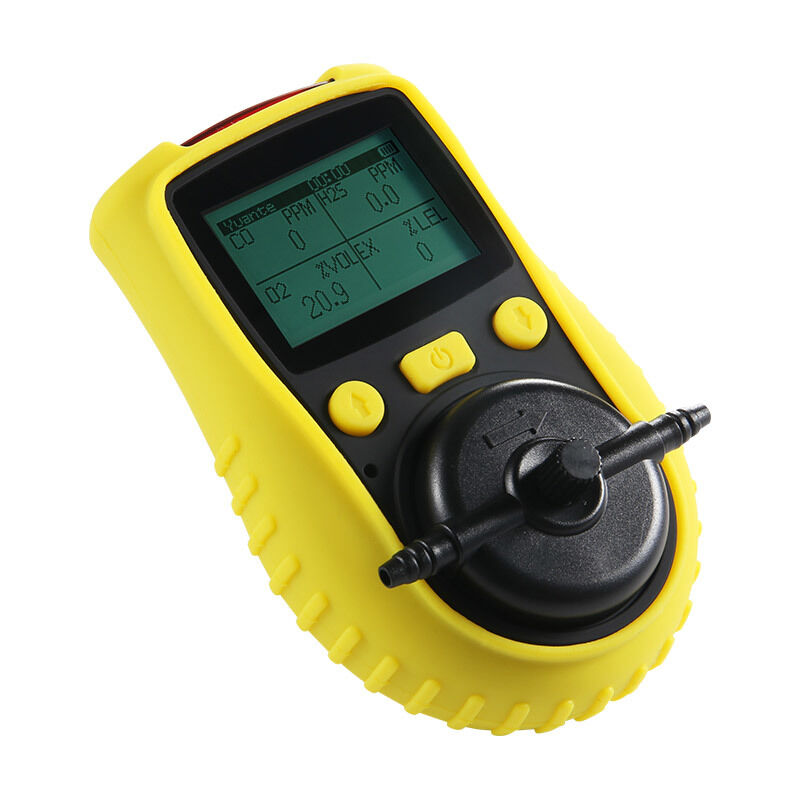

Designed for industrial safety, the YT-1200H is a compact, high-accuracy portable gas detector using diffusion technology. It reliably monitors toxic gases, flammable gases, and oxygen levels in hazardous environments. Cost-effective and mini-sized, it features a back clip and silicone protective case for diverse industrial applications.
The YT-1200H series offers a mini-sized, cost-effective, high-accuracy portable gas detection solution. Its user-friendly design, comprehensive functionality, and durable construction (ABS + leather case with silicone protection) make it suitable for a wide range of industrial situations. The included back clip ensures comfortable wearability.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Electrochemical (CO, H2S, O2); Catalytic Combustion (LEL) |
| Measuring Range | CO: 0–1000 ppm H2S: 0–100 ppm O2: 0–30%VOL LEL: 0–100%LEL |
| Resolution | CO: 1 ppm H2S: 1 ppm O2: 0.1%VOL LEL: 1%LEL |
| Precision | <1–5% F.S. |
| Display | Monochrome dot matrix 128*128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10–3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4–6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C – 50°C |
| Working Humidity | 15 – 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L * W * H) | 131 * 83 * 35 mm |
| Weight | 240g |
Shenzhen Yuan Te Technology Co., Limited (brand: Safegas) was founded in 2010 and has 16 years of experience in designing, producing, and selling gas detection equipment and systems. We serve industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
