| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | SAFEGAS |
| प्रमाणन: | Chinese EX certificate |
| मॉडल संख्या: | SKY8000 |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 10 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | प्रति माह 300 टुकड़े |
| तापमान: | -20℃~+50℃ | गारंटी: | 12 महीने |
|---|---|---|---|
| नमी: | 0~95%आरएच(कोई संक्षेपण नहीं) | रंग: | हरे के साथ काला |
| शक्ति: | लिथियम पॉलिमर बैटरी | जांच विनिर्देश: | आवश्यक, तापमान और जांच की लंबाई के अनुसार चयन करें |
| नमूनाकरण विधि: | पंप -सक्शन | वज़न: | 3700g |
| गैस का पता लगाना: | PH3 SF6 ETO O2 CO VOC H2S | मुद्रण समारोह: | आंतरिक पोर्टेबल प्रिंटर या बाहरी ब्लूटूथ प्रिंटर के साथ वैकल्पिक |

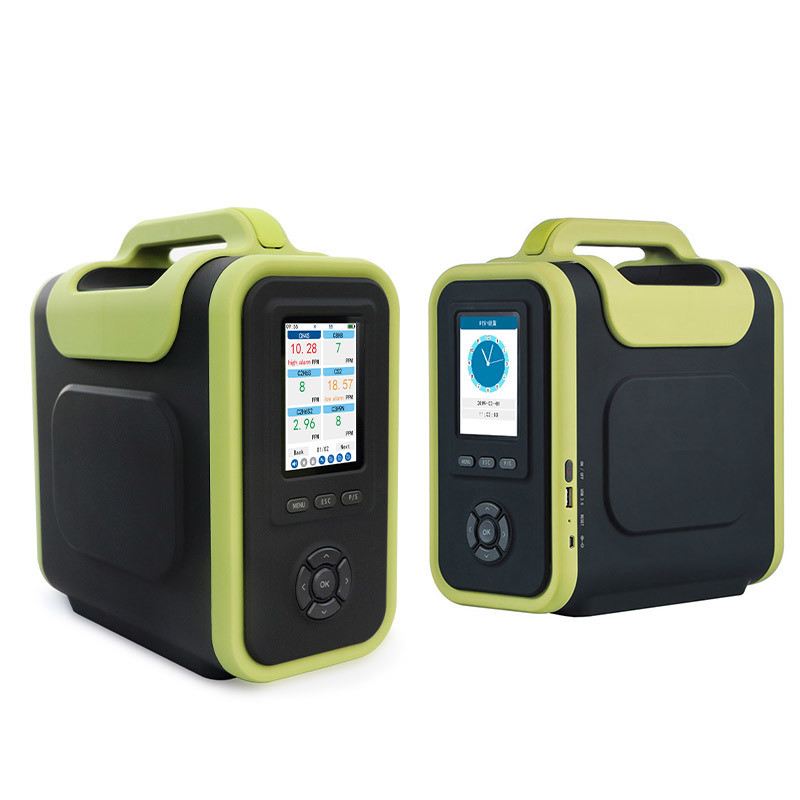

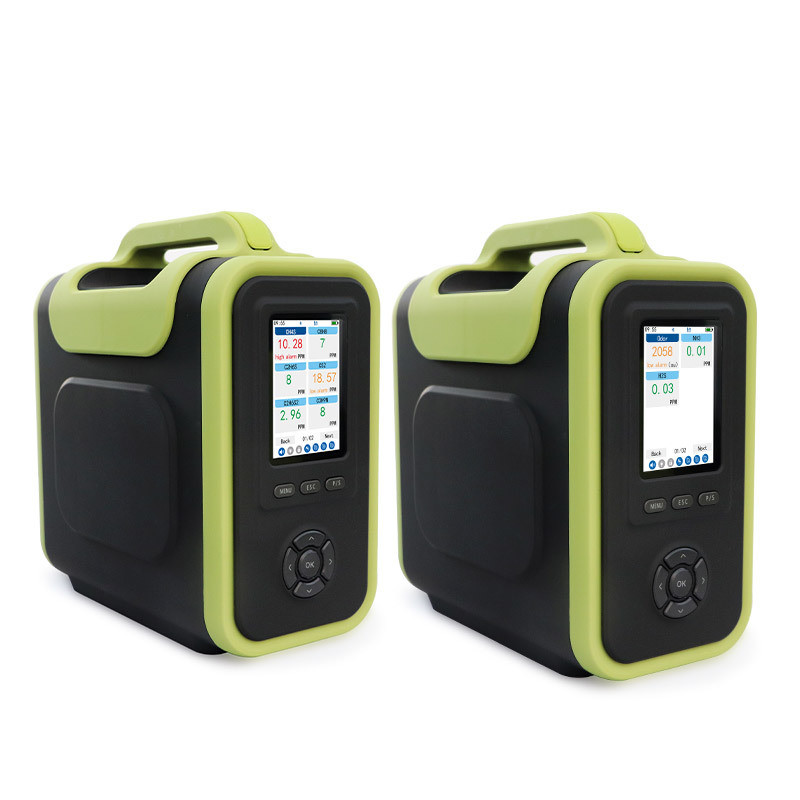

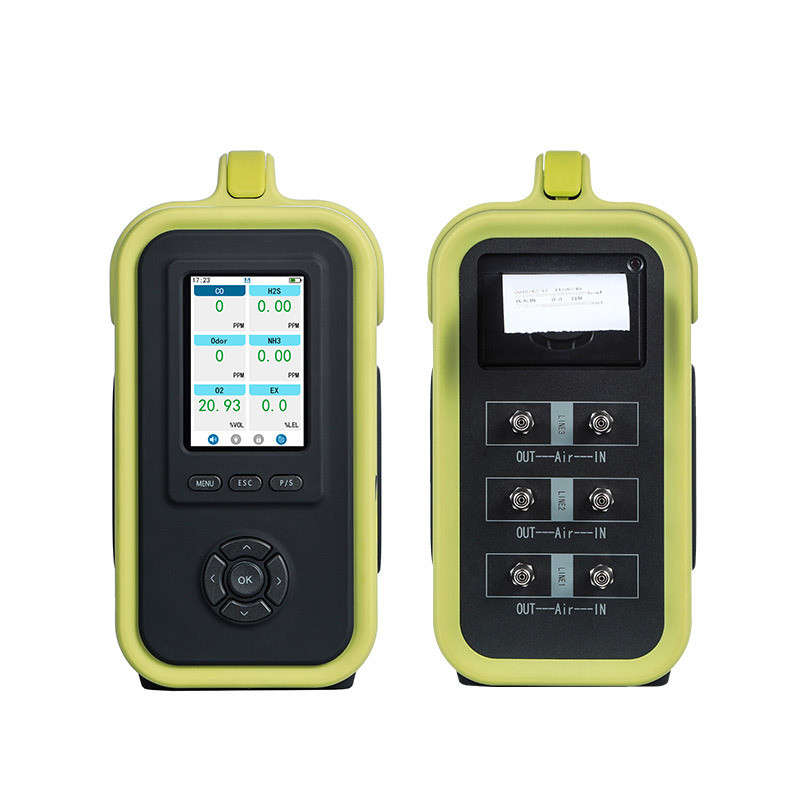

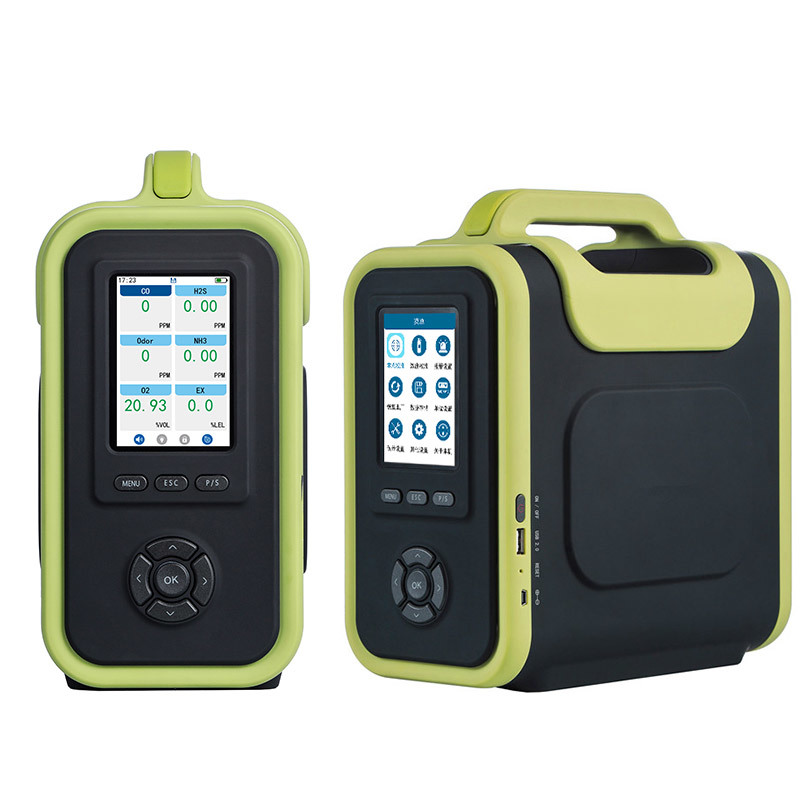

The SKY8000 is a portable gas analysis instrument designed for industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis, and various other applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules, each featuring its own pump. The modular internal structure enables separate air intake for different gases, effectively avoiding cross-interference.
Key features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle, Chinese and English operation interfaces, fall alarm, password protection, and safety reminder functions. The instrument offers optional high-temperature probes for monitoring gas concentrations in harsh high-temperature and high-humidity environments. Powered by a large-capacity lithium battery with extended standby time, the casing is constructed from high-strength engineering materials with ergonomic design for practical operation.
| Sensors | Specified according to application |
|---|---|
| Gas Detected | PH3, SF6, ETO, O2, CO, VOC, H2S |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
| Display | Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage | Independent SD memory card, Max.32G, measurement data can be recorded automatically, customizable record time interval |
| Data Transmission and Download | RS485 signal output, USB interface data transmission, with upper computer software for downloading storage, analyzing and printing data |
| Print Function (Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print Content (Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger | Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language | Chinese/English |
| Wireless Network (Optional) | Bluetooth |
| Network Frequency | 2.4G high frequency |
| Wireless Transmission Distance | Bluetooth is less than 10m |
| Probe Specifications | The smoke environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m. |
Features an atmospheric exterior with convenient carrying handle design. Constructed with heavy, stylish aviation wear-resistant materials. Equipped with a 3.5-inch high-definition color screen offering high resolution and wide viewing angle with user-friendly interface.
Industry-first analytical instrument with patented modular internal structure. Contains up to three detection modules, each capable of detecting up to six gases. Independent modules with separate air intake effectively avoid cross-interference between gases for more accurate detection.
Up to 18 sensors can be selected to meet requirements for simultaneous detection and analysis of 18 gases. Customizable for flue gas applications with capability to measure up to 9 gases simultaneously.
Air supply system with up to three pumps allows arbitrary pump switching to prevent cross-gas loss to relevant sensors, extending sensor service life. Pump flow rate adjustable to ten different gears to meet different space environments and ensure accuracy.
Supports gas concentration data display and real-time gas concentration curve display modes with arbitrary switching capability.
Standard 8G SD memory card with continuous storage time up to seven years when set to 5-second intervals. Historical data and curves viewable directly on instrument or exportable via USB flash drive. Stores real-time data values, alarm values, maximum and minimum values, viewable by date.
Fall alarm function for underground worker safety (optional). Password protection prevents unauthorized parameter modifications. Safety alert feature for comfortable operation. High and low alarm lock function for capturing sudden gas concentration changes.
Supports PPM/mg/m³ gas unit switching with automatic concentration value conversion. Channel sensor factory reset capability. Chinese/English language switching. Timed shutdown function with intelligent settings. Sensor overload automatic protection. Built-in thermal printer for one-click data printing (optional). Wireless communication module for real-time data monitoring on computer web client and mobile app (optional). Optional high-temperature sampling probe for up to 1200°C smoke concentration.
